Description

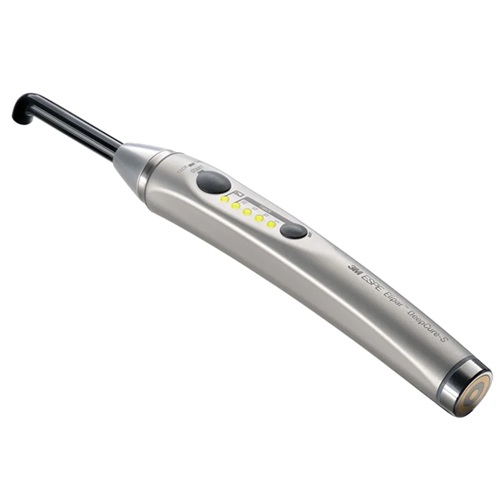

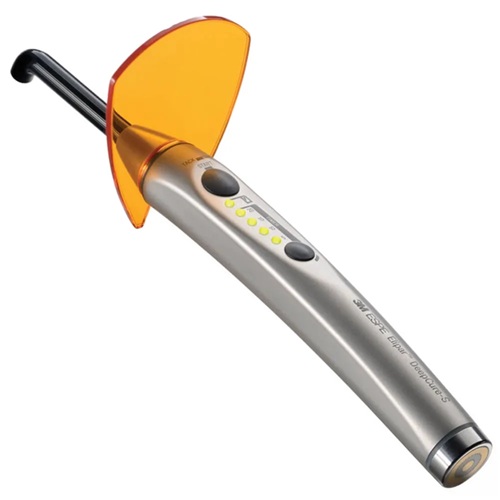

3m Espe Elipar Deepcure S Led Curing Light
The 3M ESPE Elipar DeepCure-S LED Curing Light is a high-performance light-curing unit designed for efficient polymerization of dental restorative materials. It features a powerful LED light source that delivers consistent and uniform light intensity, ensuring reliable curing results.The Elipar DeepCure-S offers a wide light-curing spectrum, making it suitable for a variety of light-curable materials, including composites, cements, and sealants. Its compact and ergonomic design allows for easy handling and access to posterior teeth.The curing light has a large light guide with a 10 mm diameter, providing a broad curing area and reducing the number of exposures needed. It also features a built-in radiometer to monitor the light intensity, ensuring optimal performance.With its advanced features and user-friendly design, the 3M ESPE Elipar DeepCure-S LED Curing Light helps dental professionals achieve efficient and reliable curing results, contributing to the success of their restorative procedures.
Key Specifications
Wavelength: 430–480 nm
Number of Curing Modes: 6
Voltage: 110 V – 240 V, 120 V
Maximum Light Wavelength: 480 nm
Minimum Light Wavelength: 430 nm
Light intensity: 1,470 mW/cm2 (-10%/+20%)
Power supply: Lithium-ion battery Approx. 120 min. battery runtime (~720 10-sec. cures) with constant light output regardless of battery charge
Operation: Intuitive two-button and single-mode operation Pre-set cure times: 5, 10, 15, and 20 sec. continuous mode (120 sec.) and tack cure mode
Curing time: Refer to material instructions; 10 sec. for many composites
Light guide: 10 mm, black coated, autoclavable, optimal intraoral reach due to the user- and patient-friendly geometry.
Features
High Light Intensity: Delivers 1200 mW/cm² intensity for efficient polymerization of dental restorative materials.
Increased Optical Power: Provides up to 50% more optical power compared to previous models.
Larger Curing Surface: Features a light guide with an 10 mm diameter, offering up to 80% more curing surface area and reducing the number of exposures needed.
Deeper Curing: Optimized optics ensure a deep, uniform cure from the surface to the cavity bottom, even at clinically relevant distances.
Improved Depth of Cure: Significantly better depth of cure, even when light positioning is difficult.
Uniform Light Distribution: Provides better light uniformity and intensity distribution at clinically relevant distances.
Easy Access: Updated light guide geometry allows easy access to all tooth surfaces.
Patient Comfort: The angle of the light guide is designed for patient comfort, even with limited mouth-opening abilities.
Robust and Easy to Disinfect: One-piece, high-quality stainless steel casing is virtually unbreakable and sealed against contamination, making it robust and easy to disinfect.
Simple Operation: Features two-button operation with one cure mode for all indications.

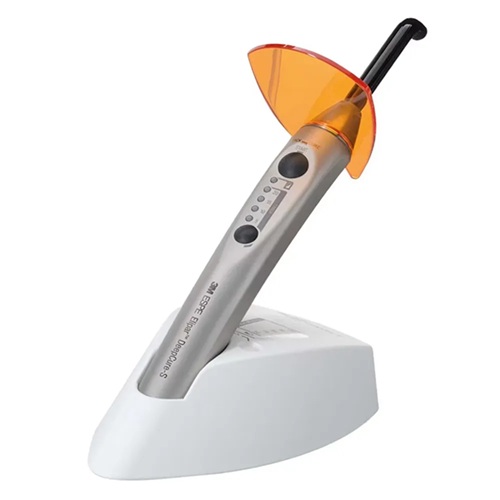

Charging Base: Includes a charging base with a built-in light intensity meter and battery charge indicator.
Packaging
1 x Handpiece (Cordless)
1 x Charging Base (230 V)
1 x Li-ion Battery Rechargeable
1 x 10mm Light Guide
1 x Eye Shield
